The relationship with the line is finished with 2 filet welds, too at the outside as other than at inside the Raised Confronted Slip-On Flanges. Level Confronted Slip-On Flanges have a lower material expense than weld neck Flanges and are everything seen as the more obligingly different. Our Carbon Steel Slip On Flanges Manufacturers work environments can finish any degree of blueprints. Slip on pipe Flanges may what's more be utilized a lap joint Flanges expecting Type B or Type C stub closes are utilized.

ASME B16.5 Slip On Flanges and ASME B16.47 Series b Carbon Steel Slip On Flanges might be added to the farthest uttermost degrees of a line or to in any event terminations of a line fittings. treated steel slip on Flanges is coordinated so the introduced finish of the line or fitting is frustrated or shy of the Flanges face by the thickness of the line divider paying little respect to 1/8 of an inch. This considers a filet weld inside the Slip on Flanges muddled from the thickness of the line divider without harming the Flanges face. We are ASME B16.5 SORF Plate Flanges and Slip On Flanges Manufacturers in India

nickel-flanges

Slip On Flanges Manufacturers, Slip On Flanges Suppliers, Slip On Flanges Stockists, Slip On Flanges Exporters

Slip On Flanges Manufacturers in India, Slip On Flanges Suppliers in India, Slip On Flanges Stockists in India, Slip On Flanges Exporters in India

Slip On Flanges,We are Driving Manufacturers of Stainless Steel Slip On Flanges, We as a whole around have a coordinated heap of 6 inch Hardened Steel Slip On Flanges, Treated Steel Decreasing Slip On Flanges and Hardened Steel Slip Ring Flanges to satisfy any need environment its epic or little, We had given Hardened Steel Slip-on Line Flanges, 8 inch Treated Steel Slip On Flanges in Many ocean front and toward the sea endeavors the world over.

Slip On Flanges On Flanges Aspects and SS Slip On Flanges Details going before getting it from us. Email to get most recent worth study of 4 inch Hardened Steel Slip On Flanges. Slip On Flanges Manufacturers in India. We are giving ANSI B16.5 Class 150 Slip-On Flanges, Carbon Steel slip on Flanges level face, Raised Confronted Slip-On Flanges, ANSI B16.5 SS SORF Flanges at moderate expense pondering sensible expert hours in India and titanic wellspring of top notch ASME B16.47 SORF Flanges, most ideal condition, cost open in Mumbai, India.

ANSI B16.5 Slip On Flanges and CS SORF Flanges to Vietnam, Bahrain, India, Malaysia, Indonesia, Philippines, Thailand, UK, Saudi Arabia (KSA), Kuwait, Oman, Qatar, South Africa, Singapore, Joined Bedouin Emirates (UAE). In the event that you are significance to buy astonishing ASME B16.47 Series An and B SORF Flanges, most very smart arrangement, cost in India, check our value once over of Inconel slip on present Flanges including Duplex Steel SORF Flanges, Alloy 20 Slip on Flanges and We are ASME B16.5 SORF Flanges and Alloy Steel Slip On Flanges. We are jis 10k slip on Flanges Manufacturers in India, request free event of ANSI B16.5 class 150 slip-on FlangesClass 300 slip on Flanges Supplierss in india, Strung slip on Flanges and ASME B16.5 SORF Flanges exporters in india appropriately by decency of sensible expert hours in India and superb wellspring of top notch PN10 slip on Flanges, most very smart arrangement, cost open in Mumbai, India.

Our mechanical office enbles us to get number one Slip On Flanges Manufacturers in Mumbai, Check once our Slip on welding neck Flanges, EN 1092-2 PN16 Slip On Flanges cost going before purchasing Slip on ring joint Flanges from India or China. likewise mail for our live store of slip on Flanges astm a105 to check types and sizes with our set up stock we can give you best cost of Copper Nickel SORF Flanges. We keep up wide effectively of Stainless Steel Slip On Flanges and seriously creased slip on Flanges. carbon steel raised face slip on Flanges, bs10 table e slip on Flanges in Stock in different sizes. So tolerating you are searching for best cost of table e slip on Flanges or free slip on Flanges, MSS SP-44 slip on Flanges jis 10k, Fashioned Steel Slip On Flanges close to you with most brief timeframe improvement or free event of slip on pipe Flanges. We are slip on Flanges Manufacturers in Mumbai.

Slip On Flanges Manufacturers in Mumbai, Slip On Flanges Suppliers in Mumbai, Slip On Flanges Stockists in Mumbai, Slip On Flanges Exporters in Mumbai

We can other than give free occasion of ASME B16.5 Rtj Flanges,Ganpat Metal Industries is having our Vendor and Merchant in Bangalore, Karnataka, Chennai (Madras), Tamil Nadu, Ahmedabad, Gujarat, Delhi, Pune, Maharashtra, Rajkot, Ghaziabad, Uttar-Pradesh, Bhosari, Ludhiana, Punjab, Vadodara, Aurangabad, Faridabad, Gurgaon, Haryana, Indore, Madhya Pradesh, Jaipur, Rajasthan, Kolkata, West-Bengal, Khopoli, Karnataka, Kolhapur, Nagpur, Raipur, Chhattisgarh.. So in case you are looking for best expense of ASME B16 5 Flanges, ANSI B16.5 Ring Joint Flanges near you with most short period of time improvement or free occasion of Flanges WNRF ASME B16.5.

Specification of Slip on Flanges

ASME B16.5 Slip On Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Slip on threaded flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
SORF Flanges Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Slip on pipe flange
Slip On Weld Flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 SORF Flanges
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Slip On Weld Flange
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Slip on threaded flange
EN 6Bar 10Bar 16Bar 25Bar 40Bar Flat Faced Slip-On Flanges
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized ASME B16.47 SORF Flanges
Most common types of Raised Faced Slip-On Flanges Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Slip On Flange Manufacturers

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
SORF Flanges: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Flat Faced Slip-On Flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Slip on threaded flange Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Kuwait, Oman, Qatar, South Africa, Thailand, UK, Saudi Arabia (KSA), Singapore, Philippines, United Arab Emirates (UAE), Vietnam, Bahrain, India, Malaysia, Indonesia
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

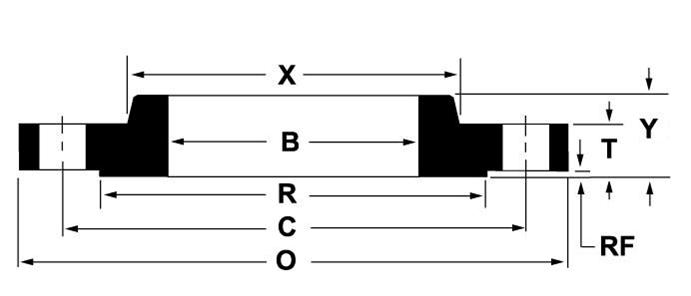

Dimensions of Slip on Flange

nickel-flanges

Class 150 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 90 9.6 30 14 34.9 2 60.3 22.2 4 5/8 M14 0.8
3/4 20 100 11.2 38 14 42.9 2 69.9 27.7 4 5/8 M14 0.9
1 25 110 12.7 49 16 50.8 2 79.4 34.5 4 5/8 M14 0.9
1 1/4 32 115 14.3 59 19 63.5 2 88.9 43.2 4 5/8 M14 1.4
1 1/2 40 125 15.9 65 21 73 2 98.4 49.5 4 5/8 M14 1.4
2 50 150 17.5 78 24 92.1 2 120.7 61.9 4 3/4 M16 2.3
2 1/2 65 180 20.7 90 27 104.8 2 139.7 74.6 4 3/4 M16 3.2
3 80 190 22.3 108 29 127 2 152.4 90.7 4 3/4 M16 3.7
3 1/2 90 215 22.3 122 30 139.7 2 177.8 103.4 8 3/4 M16 5
4 100 230 22.3 135 32 157.2 2 190.5 116.1 8 3/4 M16 5.9
5 125 255 22.3 164 35 185.7 2 215.9 143.8 8 7/8 M20 6.8
6 150 280 23.9 192 38 215.9 2 241.3 170.7 8 7/8 M20 8.6
8 200 345 27 246 43 269.9 2 298.5 221.5 8 7/8 M20 13.7
10 250 405 28.6 305 48 323.8 2 362 276.2 12 1 M24 19.5
12 300 485 30.2 365 54 381 2 431.8 327 12 1 M24 29
14 350 535 33.4 400 56 412.8 2 476.3 359.2 12 1 1/8 M27 41
16 400 595 35 457 62 469.9 2 539.8 410.5 16 1 1/8 M27 54
18 450 635 38.1 505 67 533.4 2 577.9 461.8 16 1 1/4 M30 59
20 500 700 41.3 559 71 584.2 2 635 513.1 20 1 1/4 M30 75
24 600 815 46.1 663 81 692.2 2 749.3 616 20 1 3/8 M33 100

Class 300 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 12.7 38 21 34.9 2 66.7 22.2 4 5/8 M14 1.2
3/4 20 115 14.3 48 24 42.9 2 82.6 27.7 4 3/4 M16 1.4
1 25 125 15.9 54 25 50.8 2 88.9 34.5 4 3/4 M16 1.4
1 1/4 32 135 17.5 64 25 63.5 2 98.4 43.2 4 3/4 M16 1.8
1 1/2 40 155 19.1 70 29 73 2 114.3 49.5 4 7/8 M20 2.7
2 50 165 20.7 84 32 92.1 2 127 61.9 8 3/4 M16 3.2
2 1/2 65 190 23.9 100 37 104.8 2 149.2 74.6 8 7/8 M20 4.6
3 80 210 27 117 41 127 2 168.3 90.7 8 7/8 M20 5.9
3 1/2 90 230 28.6 133 43 139.7 2 184.2 103.4 8 7/8 M20 7.7
4 100 255 30.2 146 46 157.2 2 200 116.8 8 7/8 M20 10
5 125 280 33.4 178 49 185.7 2 235 144.4 8 7/8 M20 12.7
6 150 320 35 206 51 215.9 2 269.9 171.4 12 7/8 M20 17.7
8 200 380 39.7 260 60 269.9 2 330.2 222.2 12 1 M24 26
10 250 445 46.1 321 65 323.8 2 387.4 277.4 16 1 1/8 M27 36
12 300 520 49.3 375 71 381 2 450.8 328.2 16 1 1/4 M30 52
14 350 585 52.4 425 75 412.8 2 514.4 360.2 20 1 1/4 M30 75
16 400 650 55.6 483 81 469.9 2 571.5 411.2 20 1 3/8 M33 86
18 450 710 58.8 533 87 533.4 2 628.6 462.3 24 1 3/8 M33 113
20 500 775 62 587 94 584.2 2 685.8 514.4 24 1 3/8 M33 143
24 600 915 68.3 702 105 692.2 2 812.8 616 24 1 5/8 M39 216

Class 600 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 14.3 38 22 34.9 7 66.7 22.2 4 M14 1.3
3/4 20 115 15.9 48 25 42.9 7 82.6 27.7 4 M16 1.4
1 25 125 17.5 54 27 50.8 7 88.9 34.5 4 M16 1.8
1 1/4 32 135 20.7 64 29 63.5 7 98.4 43.2 4 M16 2.3
1 1/2 40 155 22.3 70 32 73 7 114.3 49.5 4 M20 3.2
2 50 165 25.4 84 37 92.1 7 127 61.9 8 M16 4.1
2 1/2 65 190 28.6 100 41 104.8 7 149.2 74.6 8 M20 5.9
3 80 210 31.8 117 46 127 7 168.3 90.7 8 M20 7.3
4 100 275 38.1 152 54 157.2 7 215.9 116.1 8 M24 16.8
5 125 330 44.5 189 60 185.7 7 266.7 143.8 8 M27 29
6 150 355 47.7 222 67 215.9 7 292.1 170.7 12 M27 36
8 200 420 55.6 273 76 269.9 7 349.2 221.5 12 M30 52
10 250 510 63.5 343 86 323.8 7 431.8 276.2 16 M33 77
12 300 560 66.7 400 92 381 7 489 327 20 M33 91
14 350 605 69.9 432 94 412.8 7 527 359.2 20 M36 105
16 400 685 76.2 495 106 469.9 7 603.2 410.5 20 M39 150
18 450 745 82.6 546 117 533.4 7 654 461.8 20 M42 182
20 500 815 88.9 610 127 584.2 7 723.9 513.1 24 M42 232
24 600 940 101.6 718 140 692.2 7 838.2 616 24 M48 332
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 M24 3.6
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 M24 11.5
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 M27 16.5
3 80 240 38.1 127 54 127 7 190.5 90.7 8 M24 12
4 100 290 44.5 159 70 157.2 7 235 116.1 8 M30 24
5 125 350 50.8 190 79 185.7 7 279.4 143.8 8 M33 38
6 150 380 55.6 235 86 215.9 7 317.5 170.7 12 M30 50
8 200 470 63.5 298 102 269.9 7 393.7 221.5 12 M36 78
10 250 545 69.9 368 108 323.8 7 469.9 276.2 16 M36 112
12 300 610 79.4 419 117 381 7 533.4 327 20 M36 148
14 350 640 85.8 451 130 412.8 7 558.8 359.2 20 M39 182
16 400 705 88.9 508 133 469.9 7 616 410.5 20 M42 193
18 450 785 101.6 565 152 533.4 7 685.8 461.8 20 M48 258
20 500 855 108 622 159 584.2 7 749.3 513.1 20 M52 317
24 600 1040 139.7 749 203 692.2 7 901.7 616 20 M64 608

Class 1500 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 M24 3.7
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 M24 9.8
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 M27 16.4
